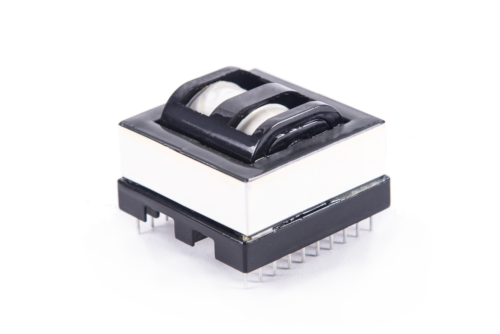

LLC TRANSFORMER
-
Designed for resonant converter topologies
-
Cost and PCB real estate savings through integration of two discrete magnetic components
-
Supports high overall efficiency
-
Zero Voltage Switching (ZVS) achievable
-
FSFR 2100 / FAN 7621 Magnetics
-
Click Here for more information
-

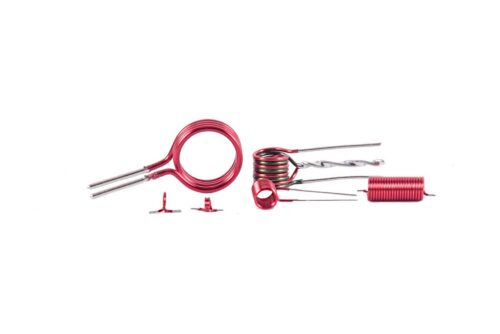

AIR COIL
-
Zero core losses
-
Saturation free
-
Performance at high frequencies
-
Simplified construction

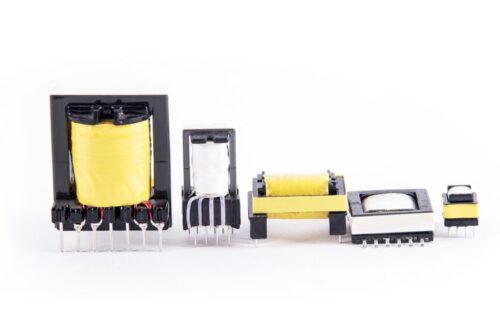

EE SERIES
-
Power and small-signal broadband applications
-
Extremely flat and compact transformers
-
Wide range of power and size
-
Designed to comply with international standards and different insulation classes
-
SMD or Through-Hole Pin type available

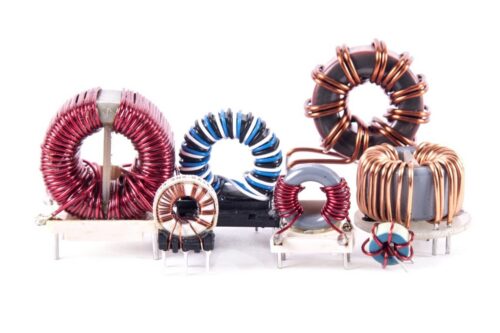

TOROID
-
Power communication applications
-
EMI/RFI filter
-
Toroidal sizes from 0.22'' to 1.5'', or above
-
Wide range of inductance from micro-Henry (µH) to milli-Henry (mH)
-
Custom size and pitch specifications
-
Variety of packaging options, including SMD and Through-Hole Pin

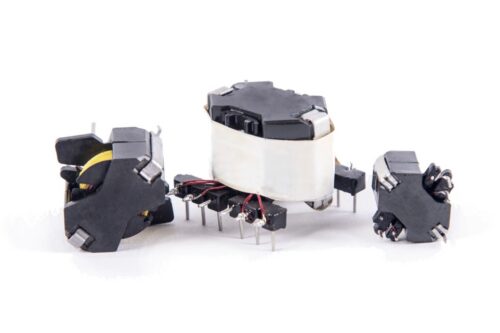

RM SERIES
-
Low-loss, highly stable filter inductors
-
Low-distortion broadband transmission
-
Power transformer applications
-
Power chokes and matching transformers

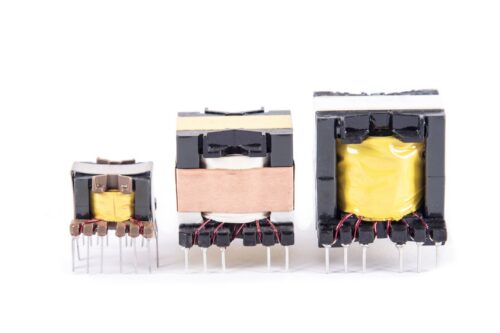

PQ SERIES
-
Compact packaging optimizing power output to core weight/size
-
Greater consistency & uniformity minimizing hot spots
-
Wide array of core sizes/selections
-
Lower cost assembly

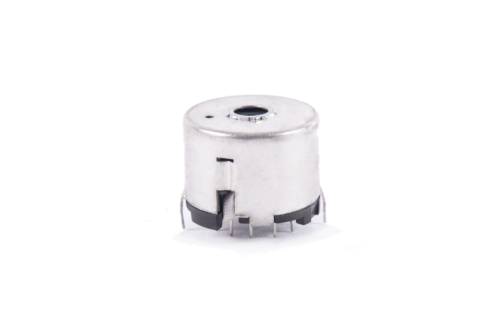

POT SERIES
-
High power and telecommunications applications
-
Wide flux area for high power with a minimum number of turns
-
Low magnetic leakage and stray capacitance
-
Good shielding due to the closed form

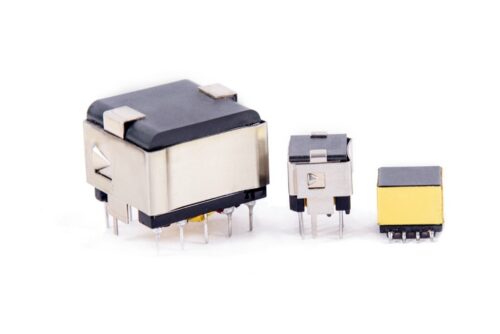

EP SERIES
-
Typically used for power supply, broadband transmission for a wide range of frequencies
-
Extremely complex design, which permits higher PCB packing densities
-
Low magnetic leakage and high inductance
-
Shielding covered for low emissions
-
SMD or Through-Hole Pin type available
